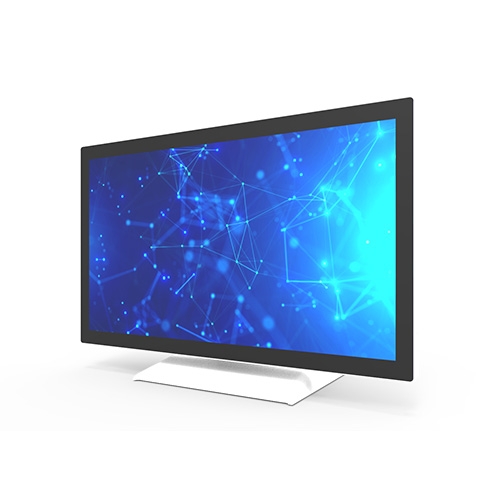

TEM-220HB

21.5-inch Desktop PCAP Touch Monitor

Suitable for Manufacturing Industries

Key Features

A slim profile and optional narrow bezel offer a refined,modern aesthetic.
Brightness: 350 nits ensure perfect visibility.
Superb reliability & durability with IP65 & IK07.
Multiple touch modes -normal,glove & touch-through glass for effortless interaction.
Versatile using scenario –landscape & portrait mode.

Product Introduction

The TEM-220HB features advanced PCAP technology, offering a commercial-grade desktop solution. A slim profile and optional narrow bezel provide a refined, modern aesthetic. Perfect visibility is ensured by a 300-nit brightness display.
With IP65/IK07 rating for protection, updated I/O options for seamless integration, and built-in OSD controls on the rear housing, it ensures a user-friendly and streamlined experience.
TEM-220HB provides flexible setup by easily switching between landscape and portrait orientations. It supports multiple touch modes—normal, glove, and touch-through glass—for effortless interaction. With a stylish thin cable management bracket and versatile design, TEM-220HB is an exceptional choice for various business sectors, including point-of-sale, point-of-information and point-of-service.

Basic Hardware Specifications

Basic Information
Model Name	TEM-220HB
Part Number	TEM-220B2002P1XXXX

Touch & Display Parameters
Screen Size	21.5" TFT LCD
Max Resolution	1920 x 1080
Contrast Ratio (Typ.)	1000:1
Display Brightness (Typ.,cd/m²)	300 (LCD),255 (PCAP)
Viewing Angle (CR>10,Typ.,L/R/U/D,°)	89 / 89 / 89 / 89
Cover Glass Surface Hardness	7H
Touch Screen	PCAP
Number of Simultaneous Touch (es)	10 Pts
Touch Interface	USB-B
OSD Touch	Yes
Hover Touch	Yes
Surface Treatment	AG

I/O Ports
USB Port	1 x USB-B
Video Port	1 x VGA,1 x HDMI,1 x DP
Built-in Speaker	Yes
Audio Port	1 x 3.5mm Audio Line-in Jack
Power Input	DC 12V,2.1mm Jack
Power Supply	Built-in,12V 60W
Other Interfaces	1 x RJ11 (for Remote Key)

Mechanical Parameters
Housing Color (Front,Back)	Black,Black or White,Wlite
Construction	Glass,SECC
Product Dimensions (W x H x D mm)	517.4 x 351.7 x 219
Net Weight (kg)	6.6
Gross Weight (kg)	10.2
Packing Dimensions (W x H x D mm)	615 x 450 x 330
VESA Mount (mm)	100 x 100
Impact Resistance (Front,Center)	IK07
Ingress Protection (Front)	IP65

Environment & Certifications
Certifications	CE,CB,UL/cUL,UKCA,FCC
Operating Temp/Humidity	0°C ~ 40°C,20% ~ 90% RH (Non-condensing)
Storage Temp/Humidity	-20°C ~ 60°C,10% ~ 90% RH (Non-condensing)

Accessories
Remote Key	Optional
Cables	1 x USB A to B,1 x VGA,1 x HDMI,1 x DP
Power Cord	1 x Optional
Power Adapter	Built-in
Bezel Brackets	None
Desktop Stand	Yes

※. Please verify specifications before quoting. This guide is intended for reference purpose only. All product specifications and information are subject to change without notice.
